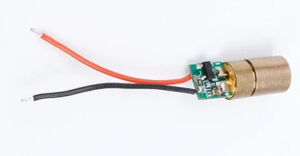

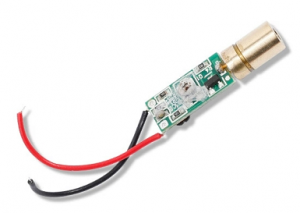

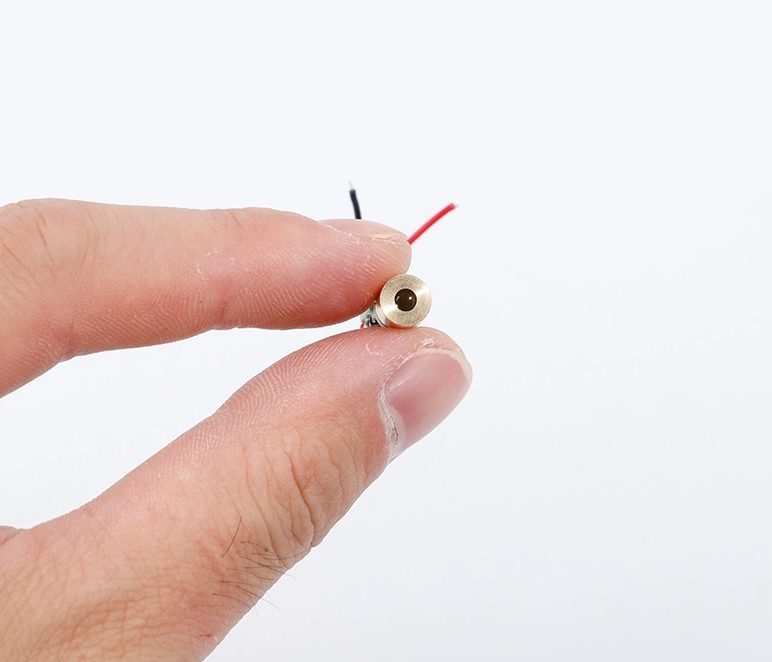

6mm Module

Applications: Pointing, Gun sight, Bore sight, Laser presenter, Sensor, Biotech, PM2.5, Barcode scanning
SpecificationInfo
Wavelength405nm/450nm/520nm/635nm/650nm/830nm/850nm
ModelVM(violet)/Blue(blue)/GM(green)/ RM(red)/ IM(Infrared)
Output Power<1mW (0.5~0.9mW) / <5mW ( 2~3mW)
Output ModeCW
Diameter∮6mm
Beam ShapeDot
Beam Divergence<1.5 mrad/ <1 mrad/ <0.8 mrad
Beam Size<10*15mm @ 10 Meters
Bore Sight Angle<3 degrees/ <1 degrees/ <0.5 degrees
Warm Up Time< 1 sec.
Operating Temperature-10~50℃
Storage Temperature-30~70℃
Input Voltage3~5V
Focus Lens MaterialGlass/ Plastic
HousingBrass
