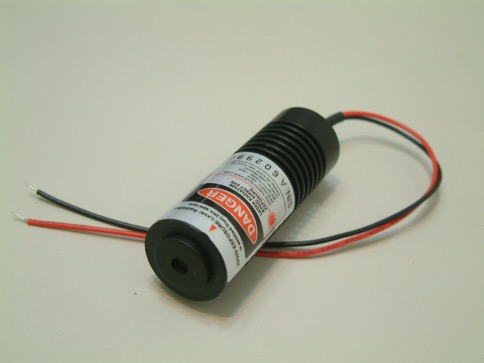

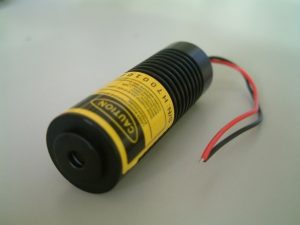

20mm Module

Applications: Aiming, Biotech, Industrial pointing

SpecificationInfo
Wavelength405nm/450nm/520nm/635nm/650nm/830nm/850nm
ModelVM(violet)/Blue(blue)/GM(green)/ RM(red)/ IM(Infrared)
Output Power<1mW / <5mW / <10mW /<20mW /<30mW
Output ModeCW
Diameter∮20mm
Beam ShapeDot, Line, Cross
Beam Divergence<1.5 mrad/ <1 mrad/ <0.8 mrad/ <0.6 mrad
Line/Cross Fan Angle5/ 10/ 20/ 36/ 60/ 90/ 110 degrees
Beam Size<10*15mm @ 10 Meters
Bore Sight Angle<3 degrees/ <1 degrees/ <0.5 degrees
Warm Up Time< 1 sec.
Operating Temperature-10~50℃
Storage Temperature-30~70℃
Input Voltage3~5V
Focus Lens MaterialGlass/ Plastic
HousingAluminum with black anodizing
